Cavity

For a GIA student or professional jewelry appraiser, mastering the identification, plotting, and evaluation of clarity characteristics is essential. Among these characteristics, a cavity requires special attention due to its dual nature as both an internal and surface-reaching feature, as well as its potential impact on a diamond's durability and value.

1. What is a Cavity?

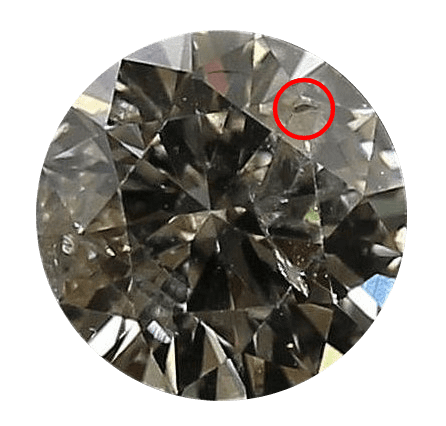

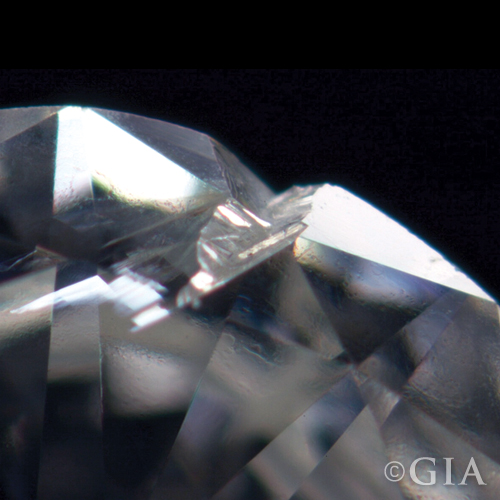

A cavity is defined as a large or deep opening on the diamond's surface. While it breaches the surface (like a blemish), its significant depth classifies it primarily as an inclusion (internal characteristic).

How do they form? Cavities are typically "man-made" during the cutting and polishing process, though they originate from natural internal flaws. They most commonly occur when:

• A surface-reaching crystal or "knot" (an included diamond crystal) is dislodged or drops out during the friction of the polishing wheel.
• A diamond cutter attempts to polish away a surface-reaching feather, but the pressure causes the fragile surrounding material to break away, leaving a jagged hole.

2. How to Plot a Cavity (GIA Standards)

The GIA uses a strict color-coded system on its plotting diagrams to map a diamond's clarity characteristics.

• Red: Indicates internal characteristics (inclusions).
• Green: Indicates external characteristics (blemishes).
• Red and Green Together: Indicates a feature that is both internal and external, such as cavities, indented naturals, knots, and laser drill-holes.

Plotting Steps:

1. Locate the Feature: Use a gemological microscope or a 10x loupe to identify the exact location and shape of the cavity on the diamond. Determine if it is visible from the Crown (top) or Pavilion (bottom) view.
2. Draw the Outline (Green): Using a fine-tipped green pen, draw the exact shape of the cavity's opening exactly where it appears on the diamond's surface. The green signifies the breach of the outer facet.
3. Indicate Depth (Red): Using a fine-tipped red pen, color in the center of the green outline or use red crosshatching within the boundary. The red signifies the internal depth of the void.
4. Order of Importance: On the "Key to Symbols" list on a GIA report, the grade-setting inclusion (the one most responsible for the clarity grade) is listed first. If a cavity is large, it may be the grade-setting feature.

3. Cavity vs. Similar Characteristics

A skilled grader must distinguish a cavity from other similar surface-reaching features:

• Cavity vs. Chip: A chip is a shallow, localized break on the surface, usually caused by wear-and-tear or accidental impact on the girdle or culet. A cavity is deeper and usually formed during the manufacturing process when an inclusion falls out.
• Cavity vs. Indented Natural: An indented natural is a portion of the original rough diamond crystal that dips below the polished surface. Indented naturals are left intentionally by cutters (usually at the girdle) to maximize carat weight. Unlike a cavity, an indented natural often shows the original growth marks (trigons) of the rough diamond.

4. Evaluation and Appraisal Considerations

For appraisers—especially those valuing antique, vintage, or high-end estate pieces (such as Art Deco rings or vintage Cartier jewelry) in accordance with USPAP standards—cavities require careful analysis.

• Impact on Clarity Grade: A minor cavity located near the girdle may barely affect the grade, leaving the stone in the VS or SI range. However, a large cavity on the table facet will dramatically lower the grade (often to I1, I2, or I3) because it disrupts light return and is highly visible.
• Durability Risks: Because cavities are deep voids, they can easily trap dirt, oils, and debris, causing dark spots that diminish the diamond's brilliance over time. More importantly, a cavity acts as a structural weak point; a sharp blow to a cavity could cause the diamond to fracture further.
• Appraisal Value: When dealing with antique or estate jewelry, you must evaluate the cavity's risk during resetting or repair. If an old European cut diamond has a significant cavity on the pavilion, the appraiser must note this condition issue accurately, as it directly impacts the fair market value and retail replacement value of the gem.

Summary for GIA Students

• Definition: Deep opening on the surface where an inclusion fell out.
• Plotting: Green outline (surface) with Red fill (depth).
• Key Factors: Note the location (table vs. girdle) and size, as these dictate both the clarity grade and the long-term durability of the stone.
